EDM Molybdenum Wire, Dia0.18mm Black Molybdenum Wire for CNC EDM Machine, Moly Wire Dia0.18mm 99.95% Purity with 2km in One Spool

Basic Info

Model NO.	mo
Surface	Black Covered with Graphite

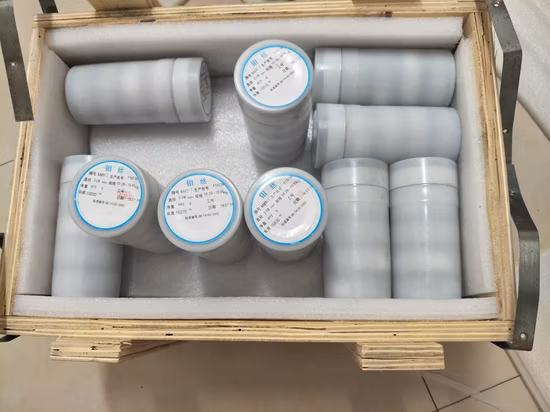

Transport Package	Wooden Cases (Exported Plywood)
Specification	dia0.03-3.0mm
Trademark	Jiangchi
Origin	China
HS Code	810296000
Production Capacity	80t/Year

Product Description

Molybdenum wire:1. Purity: Mo>= 99.95%2. Standard: GB/T 4182 or ASTM3. Specification

Molybdenum Wire Types	Diameter (inch)	Tolerance (%)
Molybdenum Wire for EDM	0.007" ~ 0.01"	±3% wt
Molybdenum Spray Wire	1/16" ~ 1/8"	±1% to 3% wt
Molybdenum Wire	0.002" ~ 0.08"	±3% wt
Molybdenum Wire(clean)	0.006" ~ 0.04"	±3% wt

4. Chemical composition

Content of molybdenum	Content of all other elements	Content of each element
≥99.95%	≤0.05%	≤0.01%

5. Application of Molybdenum wire
1). Molybdenum wire is widely for wire cutting machine. 2). Molybdenum wire is used in lighting (such as used as mandrel, support wire, lead-in wire, etc.)

Purity 99.95%W Pure tungsten wireWAL wire Physical Properties1. purity: 99.9%2. density: 19.23. Size: Dia(0.04-2.0)mm4. Usage: light scource, EDM, Vaccum furnace, Semiconductor and so on.5. Chemical test:

Grade	W MIN %	Total impurity content % min	Each impurity content % min
WAL1,WAL2	99.95	0.05	0.01
W1	99.95	0.05	0.01
W2	99.92	0.08	0.01
